GYTC8A

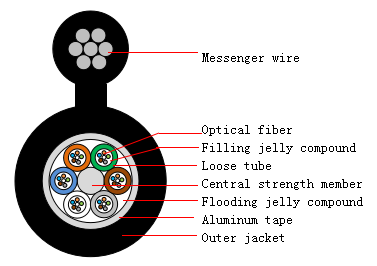

Product Structure:
Product Description:
GYTC8A (Loosetube stranding, Metal strength member, Flooding jelly compound,Aluminum-polyethylene adhesive sheath, ‘8’ layer )
Standards:
YD/T1155-2011 ‘8’ layer Self-Supportingoptical cable for telecommunications
Technical Parameters(Typical Value):
Fiber Count | Structure | Diameter (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic |
2-30 | 1+5 | 9. 2×16. 1 | 139 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
32-36 | 1+6 | 9. 6×16. 5 | 152 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
38-60 | 1+5 | 10. 0×16. 9 | 152 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
62-72 | 1+6 | 10. 6×17. 5 | 172 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
74-84 | 1+7 | 11. 5×18. 4 | 186 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
86-96 | 1+8 | 12.2×19. 1 | 198 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
98-108 | 1+9 | 12.8×19. 7 | 211 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
110-120 | 1+10 | 13.5×20. 4 | 219 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
122-132 | 1+11 | 14.1×21. 0 | 240 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
134-144 | 1+12 | 14.8×21. 7 | 256 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
|
|
|
|
|
|
|
|
|
|
|
Note 1.D refers to the cable diameter;
2.The relevant technical Parameters canbe adjusted according to the customer’s demands;
3.The block water way can be adjustedaccording to the customer’s demands;
4.The design flame resistance,anti-rodent, termite resistant cable according to the customer’s demands.
