GYFC8Y

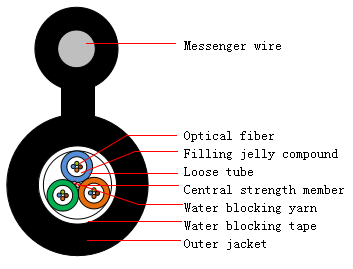

Product Structure:
Product Description:
GYFC8Y (Loosetube stranding, Non-metal strength member, Half dry water-blocking, PE sheath,‘8’ layer)
Standards:
YD/T1155-2011 ‘8’ layer Self-Supportingoptical cable for telecommunications
Technical Parameters(Typical Value):
Fiber Count | Structure | Diameter (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic |
2-12 | 1+3 | 8. 5×13.0 | 78 | 600 | 1200 | 300 | 1000 | 10D | 20D |
|
|
|
|
|
|
|
|
|
|
Note 1.D refers to the cable diameter;
2.The relevant technical Parameters canbe adjusted according to the customer’s demands;
3.The block water way can be adjustedaccording to the customer’s demands;
4.The design flame resistance,anti-rodent, termite resistant cable according to the customer’s demands.
