Outdoor Cabling Bow-Type Drop Cable
(GJYXCH, GJYXDCH, GJYXFCH, GJYXFDCH)
2 Double Core Side By Side Bow-Type DropCable

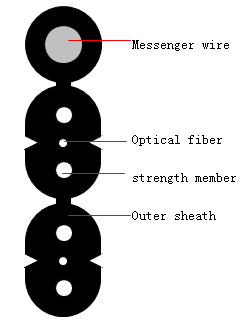

Product Structure:
Product Description:
Double coreindependent GJYXCH (Metal strength member, LSZH sheath, Non Self-Supporting)
Double coreindependent GJYXFCH (Non-metal strength member, LSZH sheath, NonSelf-Supporting)
Standards:
YD/T 1997-2009Bow-type drop cable for access network
Technical Parameters(Typical Value):
Type | Fiber Count | Specifications (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic |
Double core independent GJYXCH | 1 | 2.0×8. 0 | 28. 1 | 100 | 300 | 1000 | 2200 | 15 | 30 |
Double core independent GJYXFCH | 1 | 2.0×8. 0 | 21. 4 | 40 | 100 | 500 | 1000 | 15 | 30 |
Note 1.The relevanttechnical Parameters can be adjusted according to the customer’s demands;
2.PVC and other material can be used as sheathaccording to the customer’s demands.
