All dielectric strength type fiber optic cable
Application:
Suitable for self-supporting aerial installation for small span;
Mainly used in the last kilometer of FTTH cabling.
Characteristics:
Light weight and small diameter;
High tensile strength， suitable for self-supporting aerial application for small
span ;
Excellent lateral pressure resistance and temperature performance;
All dielectric structure， which avoids conducting lighting to home and improves
Safety.
Operation temperature: -40℃～﹢70℃
Transmission performance
Optical fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | G.652 1310nm/1550nm | G.655 1550nm/1625nm |
Attenuation maximum（dB/km） | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.22/0.26 |
Attenuationcanonical value（dB/km） | 3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.21/0.24 |
Note： other fibers are available on customer’s request.
GJYFXTCBY

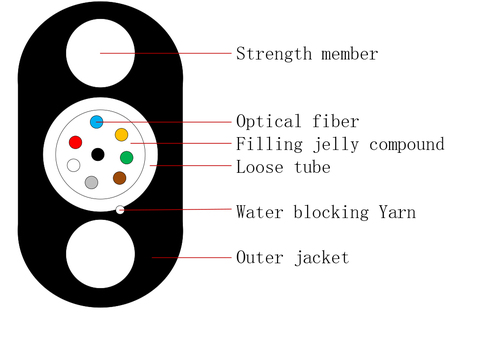

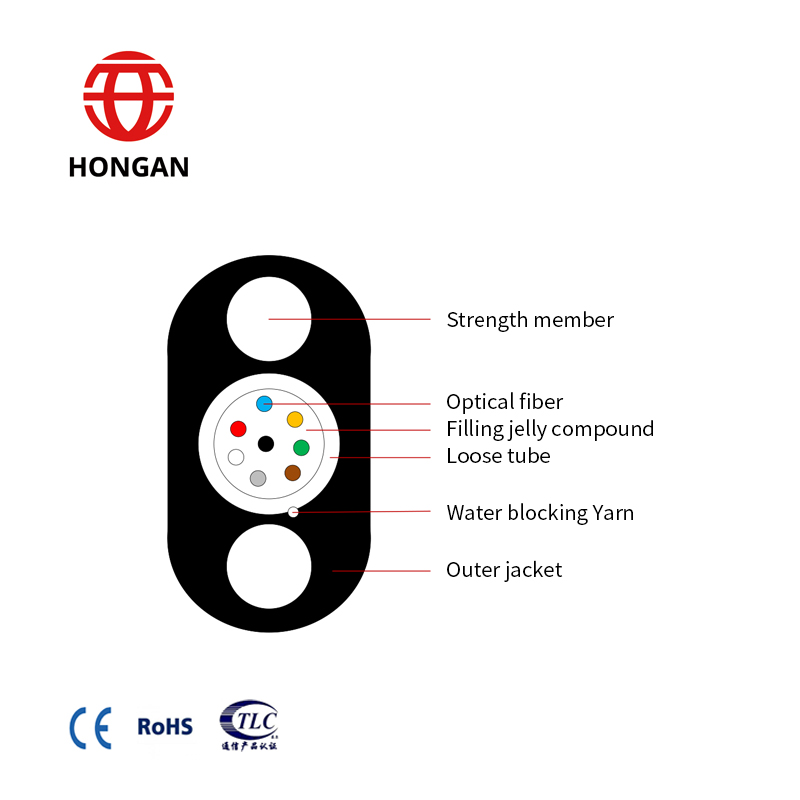

Structure:
Description:
GJYFXTCBY(Non-metallic strength member， loose tube gel-filled type， PE sheath flat outdoor fiber optic cable)
Standard:
YD/T 1770-2008 Indoor and outdoor fiber optic cable for access network
Technical parameter（typical）:
Fiber count | Loose tube diameter（mm） | Cable diameter（mm） | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic |
|
|
|
4 | 3.0 | 4.3*8.0 | 40 | 1500 | 500 | 300 | 1000 | 10D | 20D |
6 | 3.0 | 4.3*8.0 | 40 | 1500 | 500 | 300 | 1000 | 10D | 20D |
12 | 3.0 | 4.3*8.0 | 40 | 1500 | 500 | 300 | 1000 | 10D | 20D |
Note：1.D refers to diameter
2.The parameters can be adjusted according to the customer’s requirement
3.Other jacket materials can be used according to the customer’s requirement
