GJYXFCH
GJYXFCH
产品详情

FTTH Cable Product

Applications:

The cable is suitable for interconnection between instruments and communication equipment.


Characteristics:

Light weight , small diameter and low Construction Cost;

Optical cable has high compression and tension resistance, suitable for self-supporting aerial application for small span ;

With Aramid yarn strengh member, it has excellent tensile properties.

All dielectric structure,which avoids conducting lighting to home and improves Safety.


Operating Temperature:-20℃~﹢60


Transmission Performance


The Type Of The Fiber
62.5μm(OM1)
850nm/1300nm
50μm(OM2)
850nm/1300nm
50μm(OM3)
850nm/1300nm
SM
1310nm/1550nm
Attenuation Of Maximum Value(dB/km)
3.5/1.5
3.5/1.5
3.5/1.5
0.4/0.3
Attenuation Of Typical Value(dB/km)
3.5/1.5
3.0/1.0
3.0/1.0
0.38/0.25


Note:Other types of fiber can be provided according to the customer’s demands.

GJYXFCH

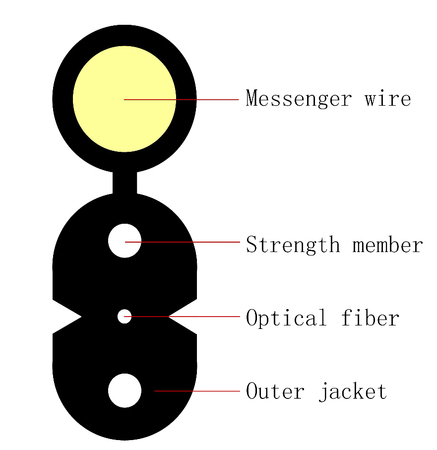

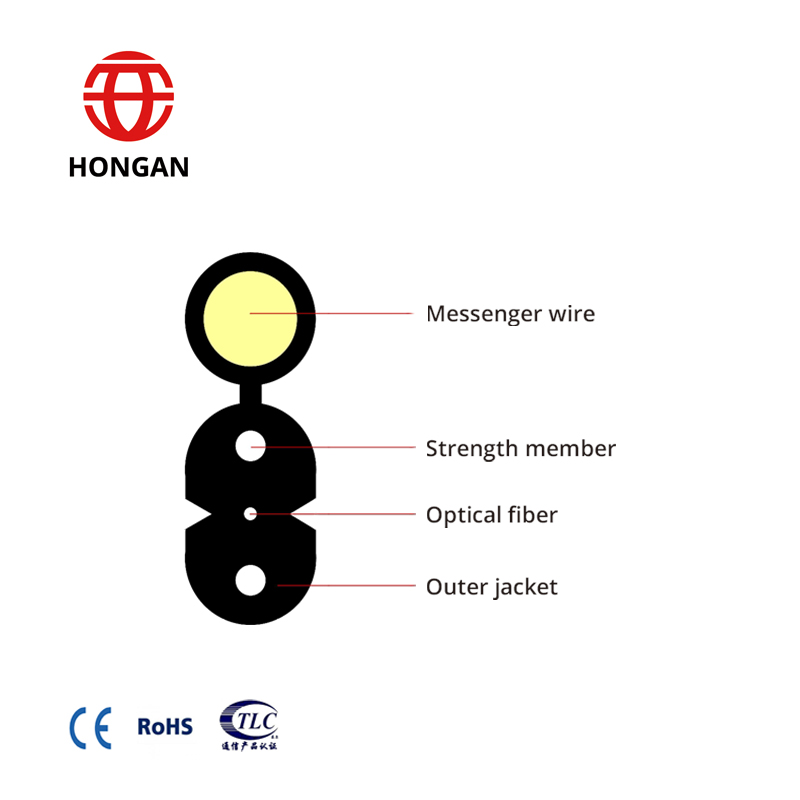

Product Structure:

蝶形引入光缆产品GJYXFCH(芳纶纱) - 英文-1.jpg

Product Description:

GJYXFCH(With Aramid yarn strengh member,FRP strength member,,LSZHsheath,Self-Supporting)


Standards:


YD/T 1997-2014 Bow-type drop cables for access network


Technical Parameters(Typical Value):


Fiber Count
Specifications
(mm)
Weight (kg/km)
Tensile(N)
Crush(N)
Bending Radius(mm)






Long    term
Short    term
Long    term
Short    term
Static
Dynamic
1
2.0*5.0
12
300
600
1000
2200
15
30
2
2.0*5.0
12
300
600
1000
2200
15
30
4
2.0*5.0
12
300
600
1000
2200
15
30


Note1.D refers to the diameter of optical cable

2.Relevant technical parameters can be adjusted according to customer requirements.
