Opto Electric Composite Cable For Telecommunications Product
Applications:
The kind of cable is suitable for remote dc power supply system and the place to get electricity difficultly.
The kind of cable can solve the problem in FTTH and in mobile communication network communications terminal equipment and power supply.
Characteristics:
At the same time realize optical communications and electricity;
Excellent performance of resistance to lateral pressure, mechanical and temperature.
Each unit cable can be directly terminated with a standard connector to reduce construction and network construction costs.
Operating Temperature:-40℃～﹢70℃
Transmission Performance
The Type Of The Fiber | 62.5μm(OM1) 850nm/1300nm | 50μm(OM2) 850nm/1300nm | G. 652 1310nm/1550nm | G. 655 1550nm/1625nm |
Attenuation Of Maximum Value(dB/km) | 3.5/1. 5 | 3.5/1. 5 | 0. 36/0. 22 | 0. 22/0. 26 |
Attenuation Of Typical Value(dB/km) | 3.5/1. 5 | 3.0/1. 0 | 0. 35/0. 21 | 0. 21/0. 24 |
Note:Other types of fiber can be provided according to the customer’s demands.
GDFJU

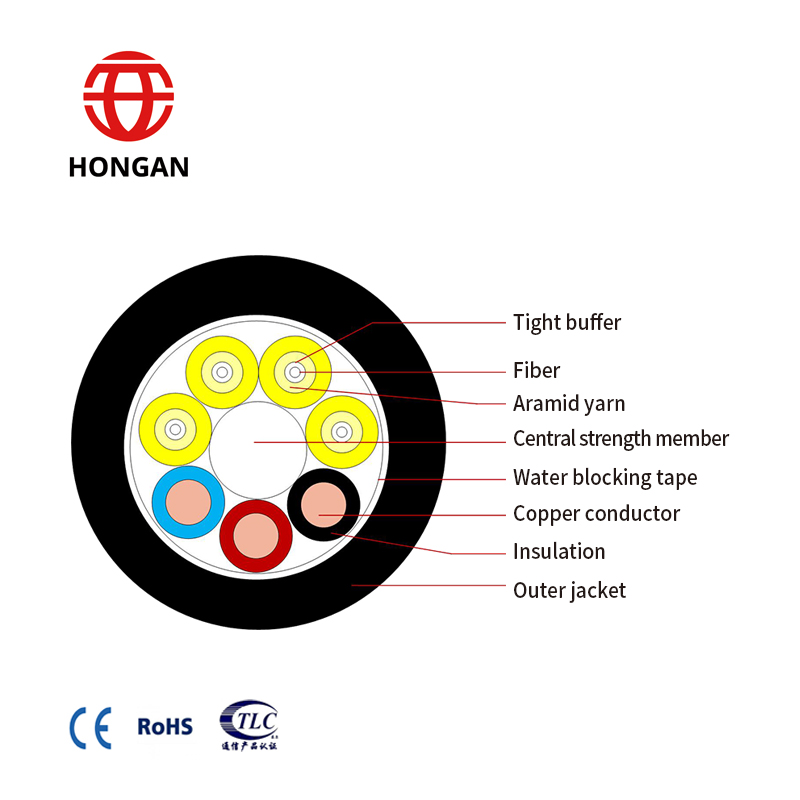

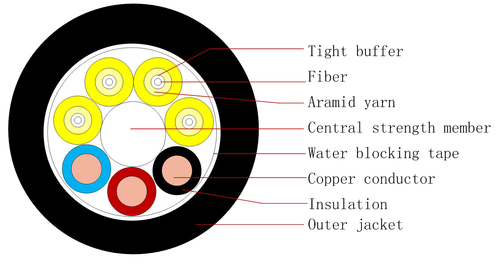

Product Structure:
Product Description:
GDFJU(Non-metallic Reinforced、ComponentsCompact optical fiber、Feeder line
、Outdoor optical cable for TPU jacket communication)
Standards:
YD/T 2159-2010 Opto electric composite cable for telecommunications
Technical Parameters(Typical Value):
Fiber Count | Specifications | Structure | Diameter (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic |
|
|
|
4 | 3*1.0+4F | 1+7 | 12.3 | 145 | 600 | 1500 | 300 | 1000 | 10D | 20D |
Note 1.D refers to the cable diameter;
2.The relevant technical Parameters can be adjusted according to the customer’s demands;
3.The design flame resistance, anti-rodent, termite resistant cable according to the customer’s demands.
