. Category 5E Unshielded Outdoor Jelly-filled Horizontal Symmetrical Twisted-Pair Cable For Communications


Applications:

10Base-T、100Base-T4、100Base-TX、100Base-VG-ANYLAN、155Mbps-ATM、622Mbps ATM、1000Base-T

Characteristics:


Physical/electrical characteristics



Propagation delay difference (max)
45ns/100m
Characteristic impedance
4-100MHz  100±15Ω
Working capacitance (max)
5.6nF/100m
DC resistance (max)
9.5Ω/100m at 20℃;
Dielectric strength between conductors (min)
2.5kV/2s
Allowable bending radius
Not less than 8 times the outer diameter of the cable



Transmission performance







Frequency
(MHz)
NEXT
(Min)
(dB/100m)
PSNEXT
Min
(dB/100m)
ELFEXT
Min
(dB/100m)
PSELFEXT
Min
(dB/100m)
RL
Min
(dB)
Phase velocity
Min
(m./s)
Phase delay
(Max)
(ns/100m)
4
66.3
63.3
56
53
23
0.604c
552
8
61.8
58.8
49.9
46.9
24.5
0.610c
547
10
60.3
57.3
48
45
25
0.612c
545
16
57.2
54.2
43.9
40.9
25
0.614c
543
20
55.8
52.8
42
39
25
0.615c
542
25
54.3
51.3
40
37
24.3
0.616c
541
31.25
52.9
49.9
38.1
35.1
23.6
0.617c
540
62.5
48.4
45.4
32.1
29.1
21.5
0.619c
539
100
45.3
42.3
28
25
20.1
0.620c
538



Operating Temperature:-20℃~﹢60℃





Category 5E Unshielded Outdoor Jelly-filled Horizontal Symmetrical Twisted-Pair Cable For Communications

UTP CAT5e (HSYY5e)

Product Structure:

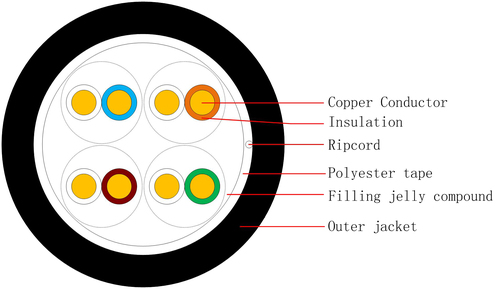

超五类非屏蔽室外填充通信用水平对绞对称电缆 HSYY-5e 英文-1.jpg


Product Description:

FTP CAT5e HSYY5e (Category 5e, PE Insulation, PE sheath, Filling jelly compound)


Standards:

YD/T 1019-2013 Polyolefin insulated horizontal twisted pair cables for digital communications

Structure Parameters


Type
Wire Gauge
PAIRS
Diameter(mm)
HSYY5e
24AWG
4
7
