Super five-type wire pair shielded communication horizontal twisted symmetrical cable series


Applications:

10Base-T、100Base-T4、100Base-TX、100Base-VG-ANYLAN、155Mbps-ATM、622Mbps ATM、1000Base-T

Characteristics:


Physical/electrical characteristics



Propagation delay difference (max)
45ns/100m
Characteristic impedance
4-100MHz   100±15Ω
Working capacitance (max)
5.6nF/100m
DC resistance (max)
9.5Ω/100m at 20℃;
Dielectric strength between conductors (min)
2.5kV/2s
Allowable bending radius
Not less than 8 times the outer diameter of the cable



Transmission performance







Frequency
(MHz)
Attenuation
(Max)
(dB/100m)
NEXT
(Min)
(dB/100m)
PSNEXT
Min
(dB/100m)
ELFEXT
Min
(dB/100m)
PSELFEXT
Min
(dB/100m)
Phase velocity
Min
(m./s)
Phase delay
(Max)
(ns/100m)
4
4.1
56.3
53.3
52
49
0.604c
552
8
5.8
51.8
48.8
45.9
42.9
0.610c
547
10
6.5
50.3
47.3
44
41
0.612c
545
16
8.2
47.2
44.2
39.9
36.9
0.614c
543
20
9.3
45.8
42.8
38
35
0.615c
542
25
10.4
44.3
41.3
36
33
0.616c
541
31.25
11.7
42.9
39.9
34.1
31.1
0.617c
540
62.5
17.0
38.4
35.4
28.1
25.1
0.619c
539
100
22.0
35.3
32.3
24
21
0.620c
538



Operating Temperature:-20℃~﹢60℃



Super five-type wire pair shielded communication horizontal twisted symmetrical cable series

STP CAT5e

Product Structure:

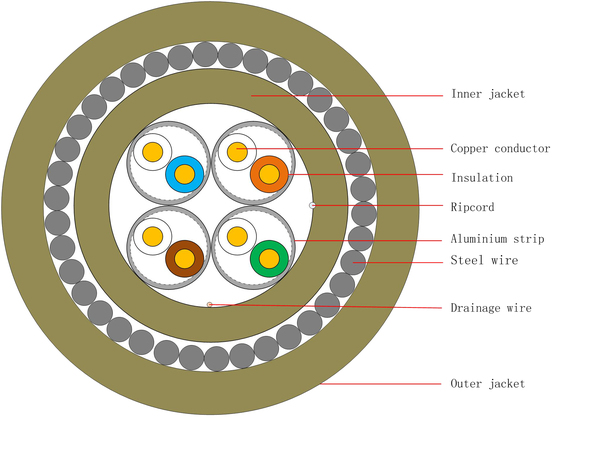

超五类线对屏蔽通信用水平对绞对称电缆 CAT5e 英文版-1.jpg


Product Description:

STP CAT5e HSYZZP (Category 5e, PE Insulation, Aluminium strip LSZH Inner sheath Steel wire LSZH Outer sheath)


Standards:

YD/T 1019-2013 Polyolefin insulated horizontal twisted pair cables for digital communications

Structure Parameters


Type
Wire Gauge
Logarithm
Diameter(mm)
HSYZZP5e
24AWG
4
11.1
