Symmetrical Pair Cables For Communications Horizontal Floor Category 3 Product

Applications:

10Base-T

Characteristics:


Physical/Electrical characteristics





Differential Phase Delay(Max)
45ns/100m
Impedance
4-16MHz   100±15Ω


Mutual capacitance(Max)
5. 6nF/100m
D. C Resistance(Max)
9. 5Ω/100m at 20℃;


Dielectric Strength Between Conductors(Min)
2.5kV/2s
Permitted Bend Radius
No less than eight times the cable diameter


Transmission Performance





Frequency
(MHz)
Attenuation (Max)
(dB/100m)
NEXT(Min)
(dB/100m)
ELFEXT(Min)
(dB/100m)
RL
(Min)
(dB)
Phase Velocity
(Min)
(m. /s)
4
5.6
32.3
27
12
0.604c
8
8.5
27.8
20.9
12
0.610c
10
9.7
26.3
19
12
0.612c
16
13.1
23.2
14.9
10
0.614c



Operating Temperature:-20℃~﹢60℃











Indoor Symmetrical Pair Cables For Digital Communications Horizontal Floor Wiring-UTP Category 3

UTP CAT3(HSYV3)

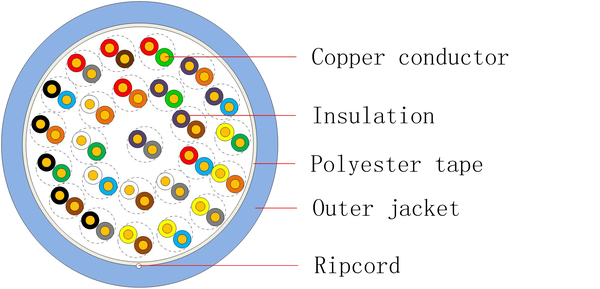

Product Structure:

三类通信用水平对绞对称电缆 HSYV-3 英文版-1.jpg


Product Description:

UTP CAT3 HSYV3 (Category 3, PE Insulation, PVC sheath)


Standards:

YD/T 1019-2013 ISO/IEC11801, ANSI/TIA/EIA-568-C, UL444(Apply to Indoor data cable), IEC61156


Structure Parameters


Type
Wire Gauge
Logarithm
Diameter(mm)
HSYV3
26AWG
25
9.1
