GJYXHC8Y
GJYXHC8Y
产品详情


FTTX Drop Cable Product

Applications:

The kind of cable is suitable for fiber to the home.


Characteristics:


Light weight, easy to install, self-supporting, can be laid along the wall. Excellent environmental resistance;It can be used for lengths of 200M and below

Operating Temperature:-20~﹢70


Transmission Performance


The Type Of The Fiber
62.5μm(OM1)
850nm/1300nm
50μm(OM2)
850nm/1300nm
50μm(OM3)
850nm/1300nm
SM
1310nm/1550nm
Attenuation Of Maximum Value(dB/km)
3.5/1. 5
3.5/1. 5
3.5/1. 5
0. 4/0. 3
Attenuation Of Typical Value(dB/km)
3.5/1. 5
3.0/1. 0
3.0/1. 0
0. 38/0. 25


Note:Other types of fiber can be provided according to the customer’s demands.


GJYXHC8Y

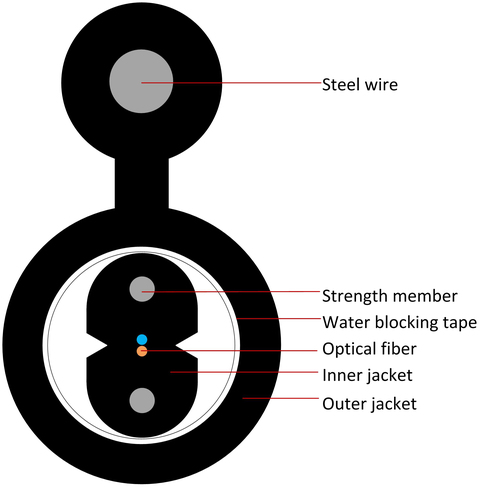

Product Structure:




Product Description:

GJYXHC8Ymetal Strength memberLSZH Inner sheathPE Outer sheath‘8’ layer


Standards:

YD/T 1997.1-2014 Drop optical fibre cables for telecommunication Part 1:Bow-type optical fibre cables


Technical Parameters(Typical Value):


Fiber Count
Steel wire
Diameter(mm)
Diameter(mm)
Weight (kg/km)
Tensile(N)
Long    Short term    term
Crush(N)
Long Short term   term
Bending Radius(mm)
Static Dynamic



124
0.4
6.0/11.8
63
600
1500
1000
2200
10D
20D


Note   1.D refers to the cable diameter;

2.The relevant technical Parameters can be adjusted according to the customer’s demands;
