Product Detail
GJXFH
GJXFH
产品详情


FTTX Drop Cable Product

Applications:

The kind of cable is suitable for fiber to the home.


Characteristics:


Small diameter, excellent performance of softness and high strength.

Operating Temperature:-20~﹢70


Transmission Performance


The Type Of The Fiber
62.5μm(OM1)
850nm/1300nm
50μm(OM2)
850nm/1300nm
50μm(OM3)
850nm/1300nm
SM
1310nm/1550nm
Attenuation Of Maximum Value(dB/km)
3.5/1. 5
3.5/1. 5
3.5/1. 5
0. 4/0. 3
Attenuation Of Typical Value(dB/km)
3.5/1. 5
3.0/1. 0
3.0/1. 0
0. 38/0. 25


Note:Other types of fiber can be provided according to the customer’s demands.


GJXFH

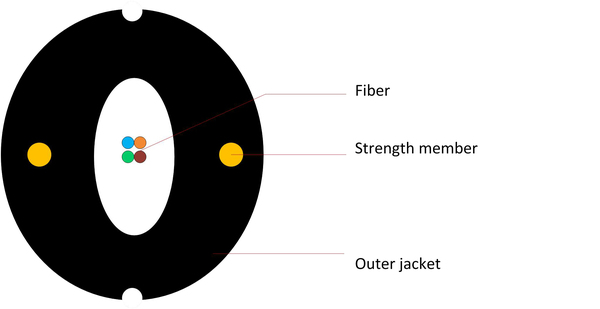

Product Structure:

圆形易开剥引入光缆GJXFH -英文版-1.jpg



Product Description:

GJXFHNon-metal strength member, LSZH sheath


Standards:

YD/T 1258. 4-2005 The series of indoor optical fiber cables


Technical Parameters(Typical Value):


Fiber Count
FRP
Diameter(mm)
Diameter(mm)
Weight (kg/km)
Tensile(N)
Long    Short term    term
Crush(N)
Long Short term   term
Bending Radius(mm)
Static Dynamic



1、2、4
0.5
3.3
10.2
40
80
500
1000
15
30


Note   1.D refers to the cable diameter;

2.The relevant technical Parameters can be adjusted according to the customer’s demands;
