Indoor Invisibility Cable Product
Applications:
The kind of cable is suitable for fiber to the home.
Characteristics:
Low cost, abrasion, high strength and softness.
Low temperature resistant, Excellent oil resistance, resistance to chemicals and environmental performance;
Good toughness and concealment,
installation and maintenance conveniently. Apply to fiber to the home.
Operating Temperature:-20℃～﹢70℃
Transmission Performance
The Type Of The Fiber | 62.5μm(OM1) 850nm/1300nm | 50μm(OM2) 850nm/1300nm | 50μm(OM3) 850nm/1300nm | SM 1310nm/1550nm |
Attenuation Of Maximum Value(dB/km) | 3.5/1. 5 | 3.5/1. 5 | 3.5/1. 5 | 0. 4/0. 3 |
Attenuation Of Typical Value(dB/km) | 3.5/1. 5 | 3.0/1. 0 | 3.0/1. 0 | 0. 38/0. 25 |
Note:Other types of fiber can be provided according to the customer’s demands.
GJI-double jacket

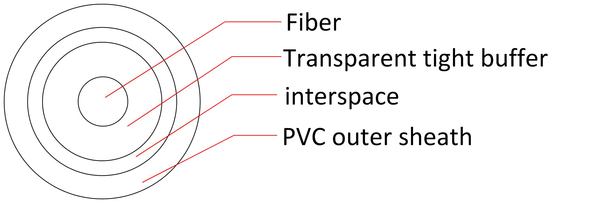

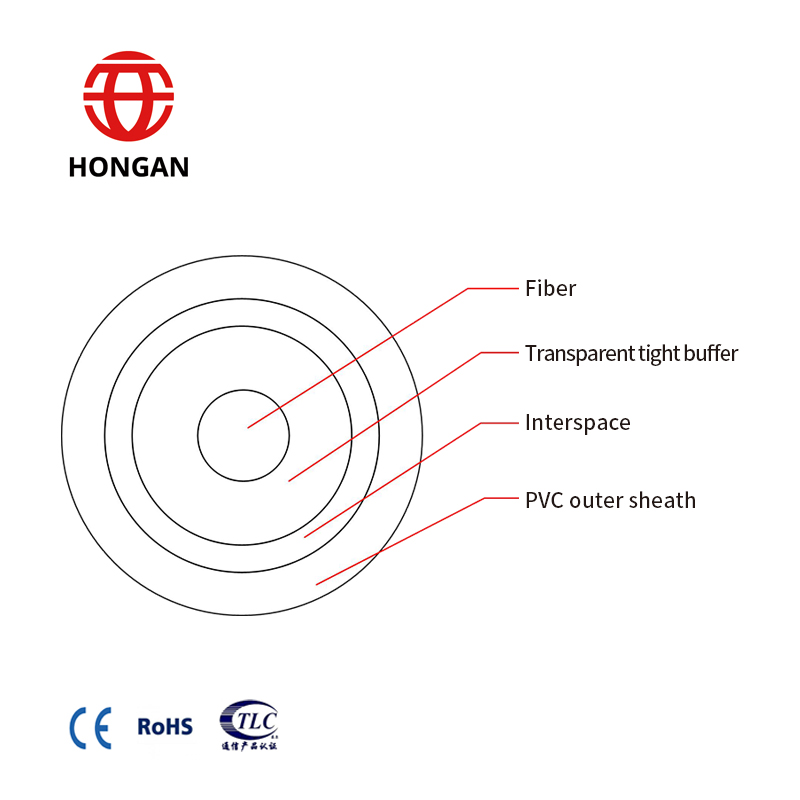

Product Structure:
Product Description:
GJI-double jacket（Transparent nylon 12 inner sheath, PVC outer sheath）
Standards:
YD/T 1258.4-2005 The series of indoor optical fiber cables
Technical Parameters(Typical Value):
Fiber Count | inner sheath thickness (mm) | inner sheath thickness (mm) | Diameter(mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic |
|
|
|
1 | 0.9 | 0.3 | 1.5 | 3.0 | 5 | 20 | 200 | 500 | 5D | 20D |
Note 1.D refers to the cable diameter;
2.The relevant technical Parameters can be adjusted according to the customer’s demands;
