Photo electric Composite Optical Cable Product
Applications:
Telecommunication Network Construction and Communication Base Station Construction in Remote Areas of Rural and Urban Areas;
Security Monitoring Project.
Characteristics:
Provide a variety of transmission technology, high adaptability, strong scalability, wide range of products;
Providing high-speed data transmission and solving the problem of equipment power consumption in network construction.
Operating Temperature:-20℃～﹢70℃
Transmission Performance
The Type Of The Fiber | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | 50μm（OM3） 850nm/1300nm | SM 1310nm/1550nm |
Attenuation Of Maximum Value(dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
Attenuation Of Typical Value(dB/km) | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
Note:Other types of fiber can be provided according to the customer’s demands.
GDJH

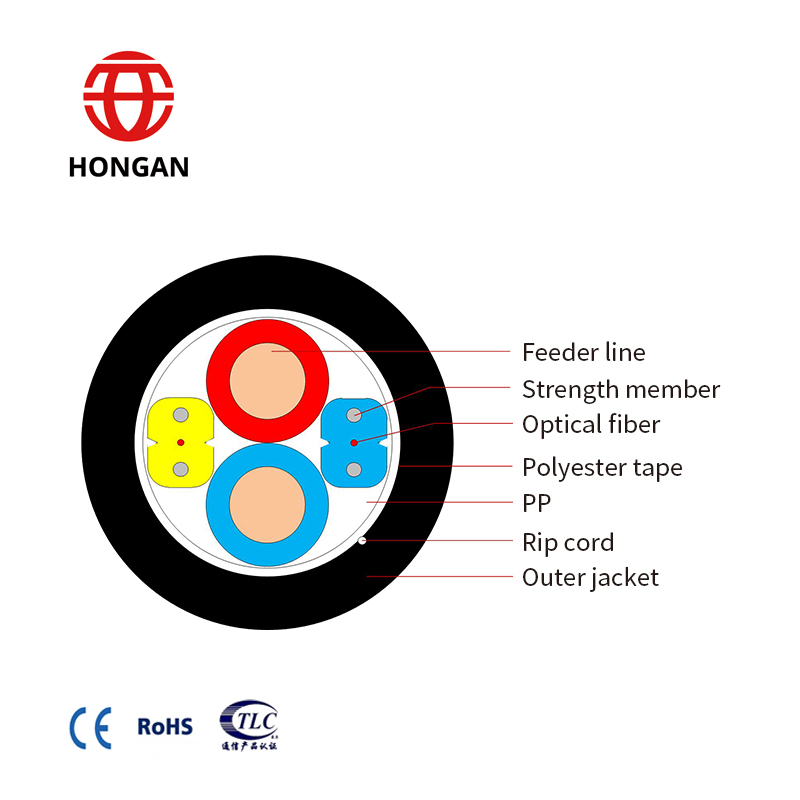

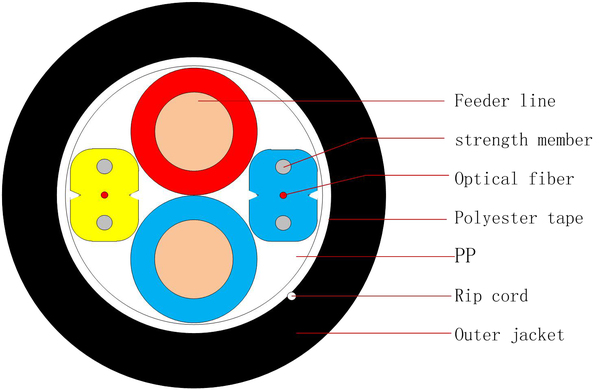

Product Structure:
Product Description:
GDJH（Twisted structure，LSZH sheath）
Standards:
YD/T 2159-2010 Optical and electrical hybrid cables for access network
Technical Parameters(Typical Value):
Fiber Count | Conductor size (mm) | Diameter（mm）
| Weight (kg/km) | Crush(N) | Bending Radius(mm) | Fiber Count |
|
|
|
|
|
|
| Long term | Short term | Long term | Short term | Static | Dynamic |
2 | 2*1.6 | 8.7 | 98 | 300 | 600 | 1100 | 2200 | 10D | 20D |
4 | 2*1.6 | 8.7 | 98 | 300 | 600 | 1100 | 2200 | 10D | 20D |
8 | 2*1.6 | 8.7 | 98 | 300 | 600 | 1100 | 2200 | 10D | 20D |
Note1.D refers to the cable diameter;
2.The relevant technical Parameters can be adjusted according to the customer’s demands;
3.The design flame resistance, anti-rodent, termite resistant cable according to the customer’s demands.
