HSYVP5e-2
HSYVP5e-2
产品详情


Horizontal twisted symmetrical cables for ultra-five types of shielded indoor communications

Applications:

10Base-T100Base-T4、100Base-TX、100Base-VG-ANYLAN、155Mbps-ATM、622Mbps ATM、1000Base-T

Characteristics:


Physical/electrical characteristics



Propagation delay difference (max)
45ns/100m
Characteristic impedance
4-100MHz   100±15Ω
Working capacitance (max)
5.6nF/100m
DC resistance (max)
9.5Ω/100m at 20℃;
Dielectric strength between conductors (min)
2.5kV/2s
Allowable bending radius
Not less than 8 times the outer diameter of the cable






Transmission performance







Frequency
(MHz)
NEXT
(Min)
(dB/100m)
PSNEXT
(Min)
(dB/100m)
ELFEXT
Min)
(dB/100m)
PSELFEXT
(Min)
(dB/100m)
RL
(Min)
(dB)
Phase velocity
(Min)
(m./s)
Phase delay
(Max)
(ns/100m)
4
66.3
63.3
56
53
23
0.604c
552
8
61.8
58.8
49.9
46.9
24.5
0.610c
547
10
60.3
57.3
48
45
25
0.612c
545
16
57.2
54.2
43.9
40.9
25
0.614c
543
20
55.8
52.8
42
39
25
0.615c
542
25
54.3
51.3
40
37
24.3
0.616c
541
31.25
52.9
49.9
38.1
35.1
23.6
0.617c
540
62.5
48.4
45.4
32.1
29.1
21.5
0.619c
539
100
45.3
42.3
28
25
20.1
0.620c
538
200
40.8
37.8
22
19
18
0.622c
537
250
39.3
36.3
20
17
17.3
0.622c
536
300
38.1
35.1
18.5
15.5
17.3
0.622c
536
400
36.3
33.3
16
13
17.3
0.623c
536
500
34.8
31.8
14
11
17.3
0.623c
536



Operating Temperature:-20℃~﹢60℃




Indoor two pairs of symmetrical horizontal twisted pair cables for class V shielded digital communication

FTP CAT5e (HSYVP5e)

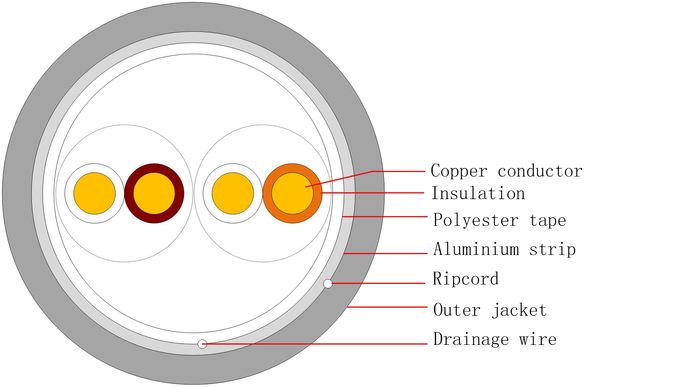

Product Structure:




Product Description:

FTP CAT5e HSYVP5e (Category 5e, PE Insulation, PVC sheath)


Standards:

YD/T 1019-2013 Polyolefin insulated horizontal twisted pair cables for digital communications

Structure Parameters


Type
Wire Gauge
Logarithm
Diameter(mm)
HSYVP5e
24AWG
2
5.5
