GYTA

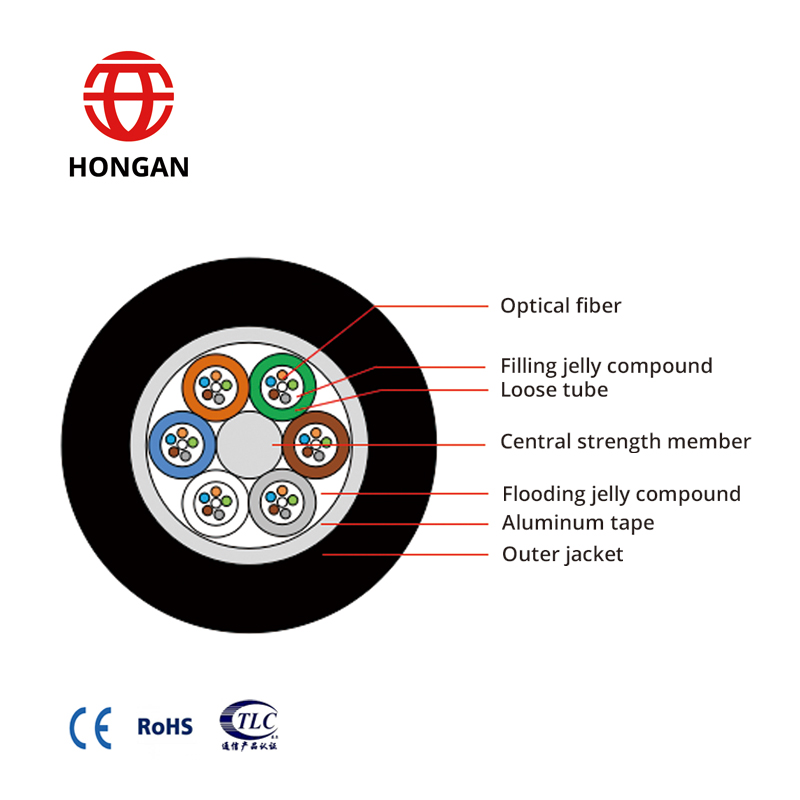

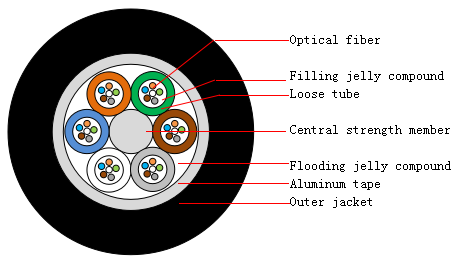

Product Structure:
Product Description:
GYTA (Loose tubestranding, Metal strength member, Flooding jelly compound,Aluminum-polyethylene adhesive sheath)
Standards:
YD/T901-2009 Outdoor layer stranded optical cablefor telecommunications
Technical Parameters(Typical Value):
Fiber Count | Structure | Diameter (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic |
2-30 | 1+5 | 9. 2 | 76 | 600 | 1500 | 300 | 1000 | 10D | 20D |
32-36 | 1+6 | 9. 6 | 91 | 600 | 1500 | 300 | 1000 | 10D | 20D |
38-60 | 1+5 | 9. 9 | 88 | 600 | 1500 | 300 | 1000 | 10D | 20D |
62-72 | 1+6 | 10. 6 | 112 | 600 | 1500 | 300 | 1000 | 10D | 20D |
74-84 | 1+7 | 11. 5 | 124 | 600 | 1500 | 300 | 1000 | 10D | 20D |
86-96 | 1+8 | 12.2 | 136 | 600 | 1500 | 300 | 1000 | 10D | 20D |
98-108 | 1+9 | 12.9 | 150 | 600 | 1500 | 300 | 1000 | 10D | 20D |
110-120 | 1+10 | 13.6 | 164 | 600 | 1500 | 300 | 1000 | 10D | 20D |
122-132 | 1+11 | 14.2 | 177 | 600 | 1500 | 300 | 1000 | 10D | 20D |
134-144 | 1+12 | 15. 0 | 195 | 600 | 1500 | 300 | 1000 | 10D | 20D |
146-216 | 1+6+12 | 14.9 | 207 | 600 | 1500 | 300 | 1000 | 10D | 20D |
218-288 | 1+9+15 | 16. 9 | 262 | 600 | 1500 | 300 | 1000 | 10D | 20D |
Note 1. D refers to the cable diameter;
2.The relevant technical Parameters canbe adjusted according to the customer’s demands;
3.The block water way can be adjustedaccording to the customer’s demands;
4.The design flame resistance,anti-rodent, termite resistant cable according to the customer’s demands.
