The Duct And Non Self-Supporting Optical Cable Product

Applications:

The kind of cable is suitable for duct, aerial non Self-Supporting, groove, tunnels, leading in and cable trench, etc.

Characteristics:

Excellent performance of water-blocking;

Excellent performance of tensile properties and temperature.

Operating Temperature:-40℃～﹢70℃

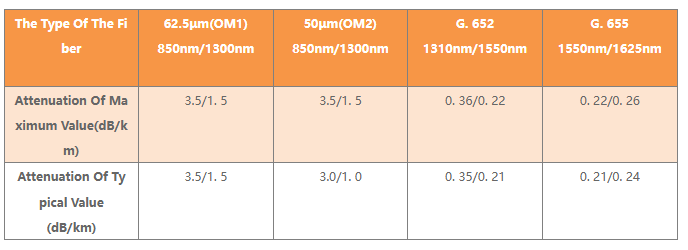

Transmission Performance

Note:Other types of fiber can be provided according to the customer’s demands.

GYFXF

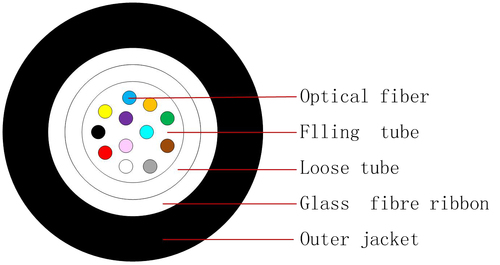

Product Structure:

Product Description:

GYFXF (Structure with central tube, Non-metal strength member, PE sheath)

Standards:

YD/T 769-2010   Outdoor central tube optical cable for telecommunications

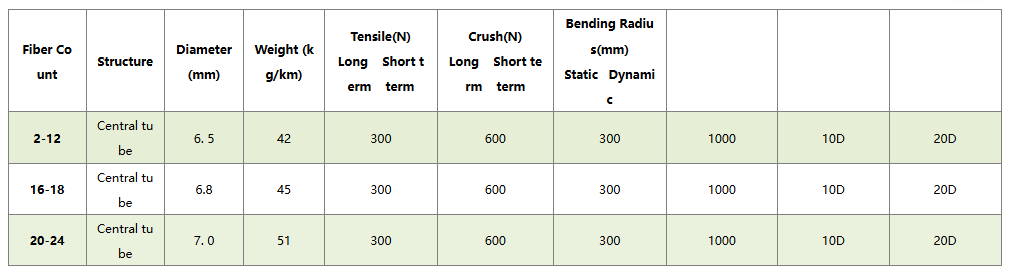

Technical Parameters(Typical Value):

Note   1.D refers to the cable diameter;

2.The relevant technical Parameters can be adjusted according to the customer’s demands;

3.The design flame resistance, anti-rodent, termite resistant cable according to the customer’s demands.
