Indoor cabling optical cable product series
Product Application:
The optical cable is suitable for multi-directional transmission between instruments or communication equipment.
Product features:
Small outer diameter, light weight, flame retardant, easy to peel, and high flexibility;
High strength aramid reinforcement, good tensile performance;
The tight dry structure is convenient for construction and maintenance.
Operating temperature: -20℃ ~ +70℃
transmission performance
Optical fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | 50μm（OM3） 850nm/1300nm | SM 1310nm/1550nm |
Maximum attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
Attenuation (dB/km) | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
Note: Other optical fibers can also be provided based on user requirements.

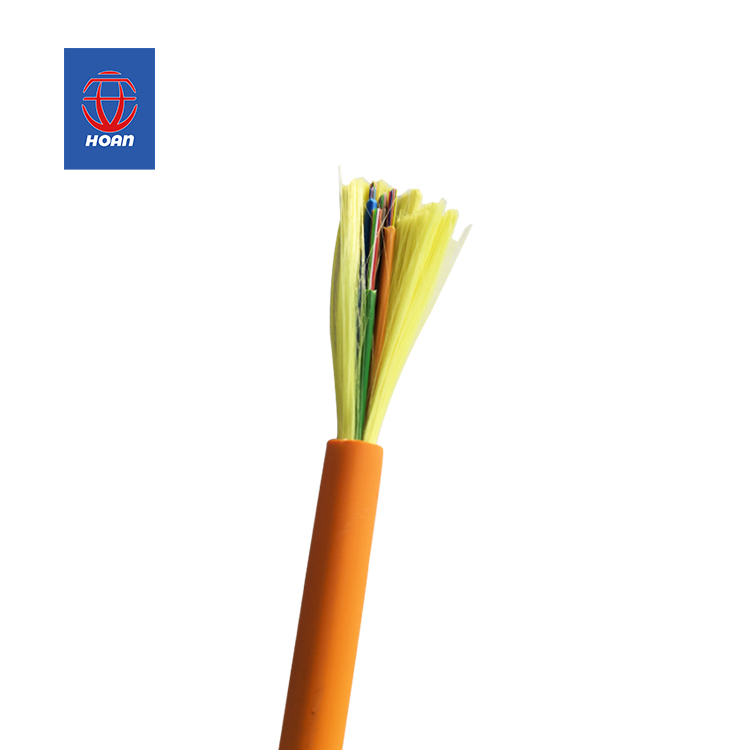

GJPFQH

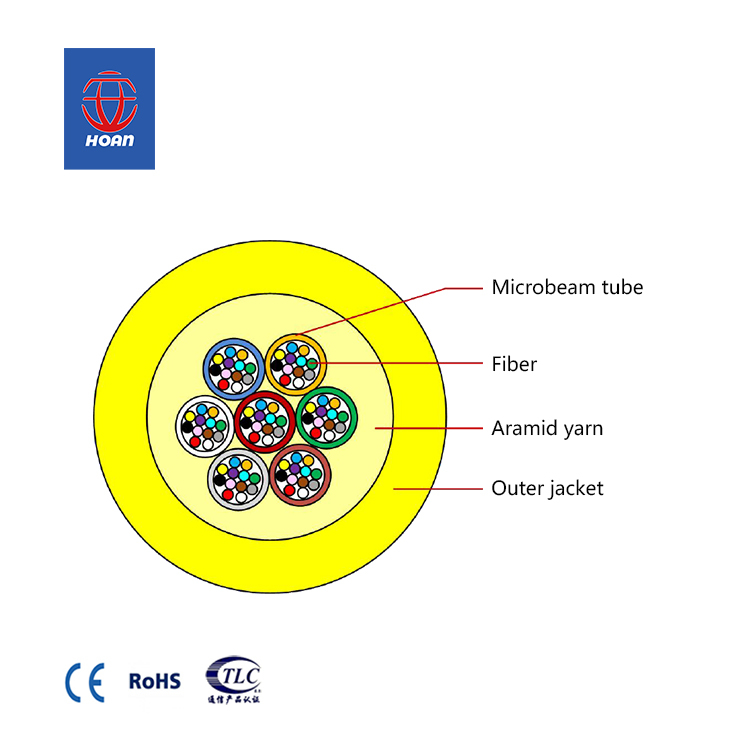

Product structure diagram:
product description ：
GJPFQH (Micro-beam tube, aramid yarn reinforcement, LSZH outer sheath)
operative norm ：
YD/T 1258.4-2005 Indoor Optical Cable Series: Multi-core Optical Cable
Technical parameters (typical values):
Number of cores | Microtube outer diameter （mm） | Optical cable specifications | Weight (kg/km) | Stretch force (N) Long term short term | Flattening force (N) Long term short term | bending radius （mm） Static Dynamic |
12 | 0.95 | 5.1 | 28 | 250 | 500 | 300 | 1000 | 10D | 20D |
24 | 1.2 | 5.9 | 35 | 250 | 500 | 300 | 1000 | 10D | 20D |
36 | 1.2 | 6.4 | 41 | 250 | 500 | 300 | 1000 | 10D | 20D |
48 | 1.4 | 6.2 | 40 | 250 | 500 | 300 | 1000 | 10D | 20D |
72 | 1.4 | 6.9 | 48 | 250 | 500 | 300 | 1000 | 10D | 20D |
96 | 1.4 | 7.5 | 55 | 250 | 500 | 300 | 1000 | 10D | 20D |
144 | 1.4 | 8.5 | 70 | 250 | 500 | 300 | 1000 | 10D | 20D |
Note
1.D refers to the diameter of the optical cable;
2. The relevant technical parameters can be adjusted according to customer requirements;
3. The cable jacket material can be customized according to customer requirements, such as PVC.
